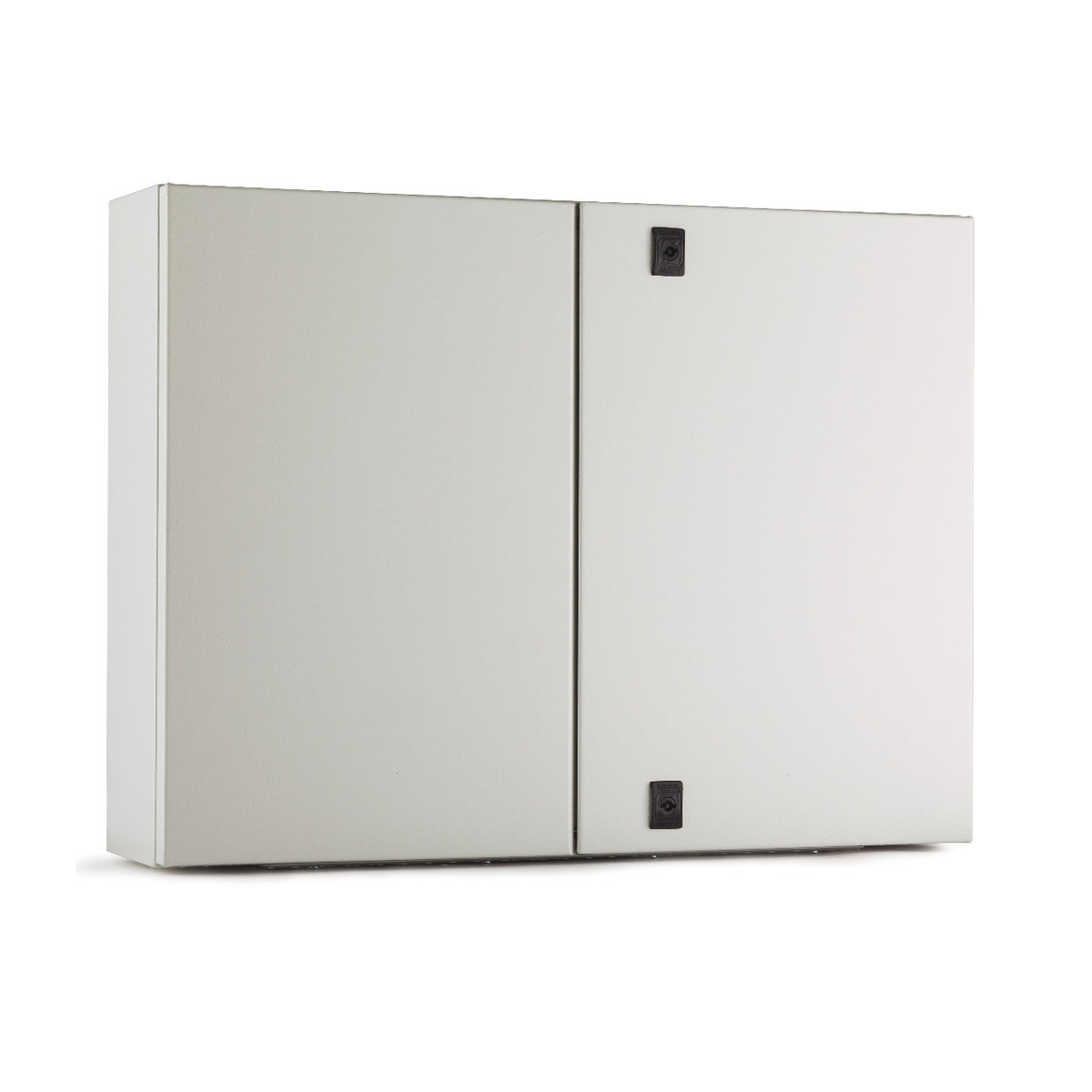

Wall Mount Double Door

EWD Series
NEMA Type 12

 Dust Tight Double Door Enclosure



Ralston’s EWD Series Double Door enclosures are designed to provide protection against dust, dirt and oil for items such as: electronic and electrical controls, instrumentation systems, pneumatic, hydraulic and machine controls.


All EWD enclosures smaller than EWD-101030 are made from 1.5mm steel with 1.5mm galvanized steel mounting plate. EWD-1001030 and larger are made from 2mm steel with 2.5mm galvanized steel mounting plates. All seams are continuously welded and ground to a smooth finish. Each enclosure comes complete with grounding studs, gland plates, and a removable galvanized back panel.

The 120° opening doors are easily removed by pulling the removable hinge pins from the hidden hinges. The door is sealed with an extruded one-piece polyurethane gasket and is secured closed with 3mm DIN type quarter turn latches.



All enclosures are phosphatized and finished inside and out with RAL 7035 light grey polyester powder coating with a textured finish.



The EWD is built to the requirements of IP55, NEMA type 12 for industrial use, and 13 for an oil and dust tight enclosure.

The EWD is CE, UL and cUL approved for Canada.


Special Orders

Custom units made from stainless steel or with special finishes, sizes or punching can be supplied on order.

Part Number Height Width Depth Weight
EWD-0601020 600 mm 1000 mm 200 mm 42.00 kgs
EWD-0608030 600 mm 800 mm 300 mm 34.00 kgs
EWD-0801230 800 mm 1200 mm 300 mm 65.00 kgs
EWD-1001030 1000 mm 1000 mm 300 mm 63.00 kgs
EWD-1001230 1000 mm 1200 mm 300 mm 72.00 kgs
EWD-1201030 1200 mm 1000 mm 300 mm 72.00 kgs
EWD-1201230 1200 mm 1200 mm 300 mm 81.00 kgs
EWD-1401030 1400 mm 1000 mm 300 mm 83.00 kgs
