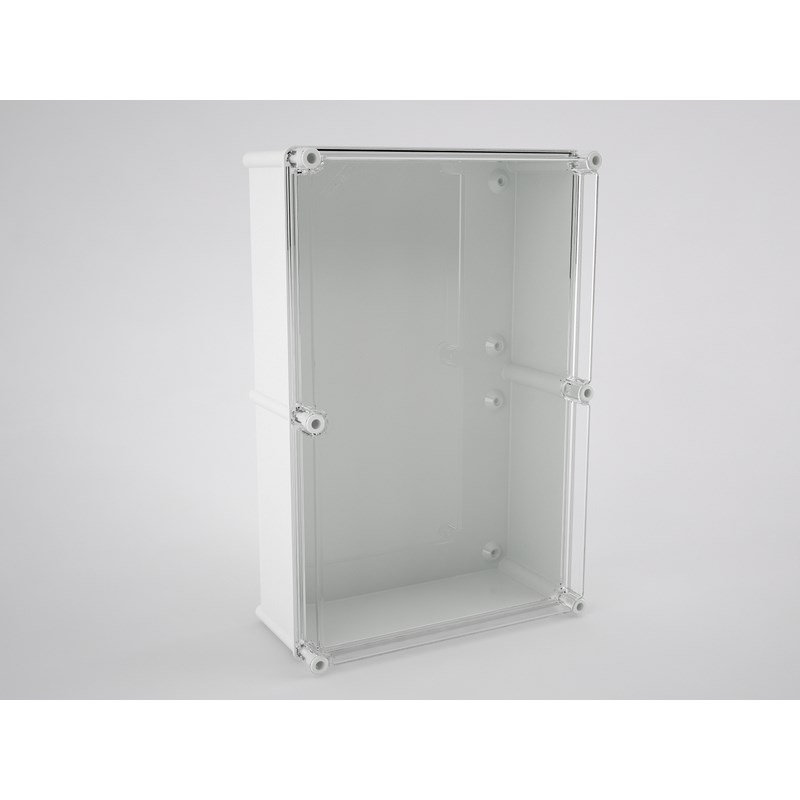

Non Metallic Fiberglass Reinforced Polyester Enclosures with Transparent Covers
Application
Ralston's RAL-JB-C Series is made up of modular boxes which may be coupled to each other to form groups or compact switchboards, whilst maintaining the double insulation properties and high protection level.
The RAL-JB-C Series is suitable for all types of mountings; even under the most severe working conditions.
Construction
The RAL-JB-C Series is a new generation of enclosure made from 3mm thick compression moulded fiberglass reinforced polyester with opaque polycarbonate inspection covers.
Through use of watertight polyurethane-foam seal and double insulation, these enclosures guarantee a high degree of protection; making them suitable use indoors and outdoors.
These enclosures have a hinged inspection cover.
Finish
All enclosures are RAL7035 light grey. Non metallic interior mounting panels are made from RAL8011 dark brown bakelite material. Metal back panels are painted with high gloss white powder coating.
International Standards
RAL-JB Series enclosures are:
• UL & cUL 508 and UL 50 listed type 4,4X
• NOTE: RAL-JB-1813-C are made to UL & CSA specifications
• CE
• IEC 529 - IP66
| Part Number | Height | Width | Depth | Weight |
|---|---|---|---|---|
| RAL-JB-1313-C | 135 mm | 135 mm | 129 mm | 0.35 kgs |
| RAL-JB-1813-C | 180 mm | 135 mm | 129 mm | 0.44 kgs |
| RAL-JB-1818-C | 180 mm | 180 mm | 129 mm | 0.50 kgs |
| RAL-JB-2713-C | 270 mm | 135 mm | 129 mm | 0.58 kgs |
| RAL-JB-2718L-C | 270 mm | 180 mm | 171 mm | 1.18 kgs |
| RAL-JB-2718-C | 270 mm | 180 mm | 171 mm | 1.27 kgs |
| RAL-JB-2727-C | 270 mm | 270 mm | 171 mm | 1.64 kgs |
| RAL-JB-3618-C | 360 mm | 180 mm | 171 mm | 1.31 kgs |
| RAL-JB-3627-C | 360 mm | 270 mm | 171 mm | 1.98 kgs |
| RAL-JB-3627H-C | 360 mm | 270 mm | 201 mm | 2.03 kgs |
| RAL-JB-3636-C | 360 mm | 360 mm | 171 mm | 2.42 kgs |
| RAL-JB-3636H-C | 360 mm | 360 mm | 201 mm | 2.56 kgs |
| RAL-JB-5427-C | 540 mm | 270 mm | 171 mm | 2.67 kgs |
| RAL-JB-5427H-C | 540 mm | 270 mm | 201 mm | 2.96 kgs |
| RAL-JB-5436-C | 540 mm | 360 mm | 171 mm | 3.62 kgs |
| RAL-JB-5436H-C | 540 mm | 360 mm | 201 mm | 3.75 kgs |
| RAL-JB-5454-C | 540 mm | 540 mm | 171 mm | 5.21 kgs |
| RAL-JB-5454H-C | 540 mm | 540 mm | 201 mm | 5.44 kgs |
| RAL-JB-7236H-C | 720 mm | 360 mm | 201 mm | 4.15 kgs |
| RAL-JB-7254H-C | 720 mm | 540 mm | 201 mm | 7.29 kgs |
