Application

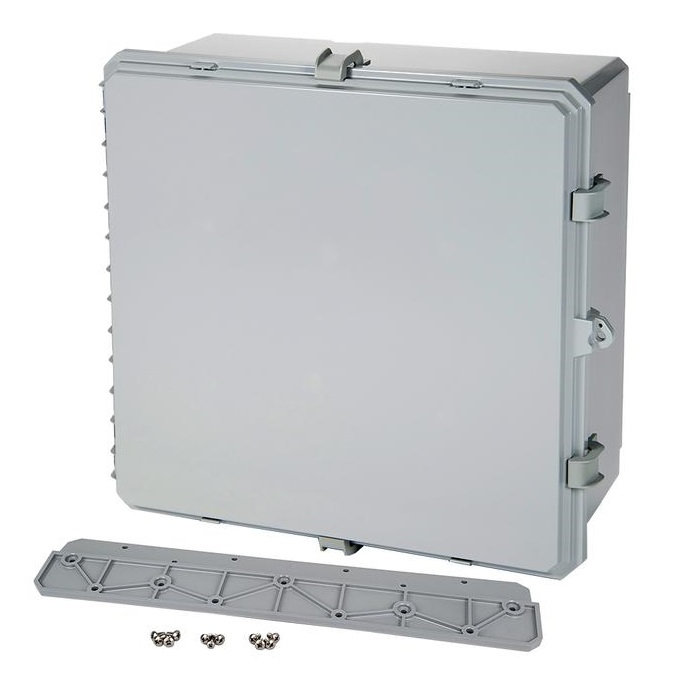

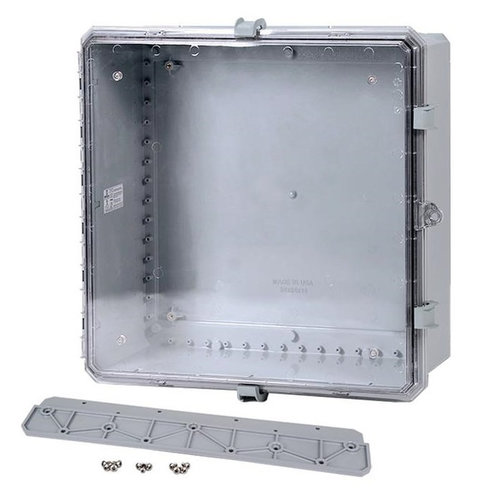

Ralston's NMSL series enclosures are designed to provide protection indoors and outdoors, against dust, dirt, oil, and water for items such as electronic and electrical controls and pneumatic components. The NMSL is well suited for corrosive environments.
Construction
All NMSL enclosures are made from injection molded polycarbonate material. Covers have a continuous stainless hinge and are secured closed with quick release latches. The cover is sealed with a polyurethane gasket. The NMSL is design molded to accept DIN rails. All enclosures come complete with wall -mounting brackets and are pad lockable. Optional inner panel can be mounted on the door of the enclosure.
Finish
The NMSL is high gloss light grey. Optional interior mounting plates are available in bare aluminum or steel painted with high gloss white powder paint.
Standards
The NMSL is built to the requirements of NEMA type 4X for industrial use water-tight and corrosion resistance.
The NMSL is UL and cUL approved for USA and Canada with an IP66 Rating.
| Part Number | Height | Width | Depth | Weight |
|---|---|---|---|---|
| NMSL-201608 | 20.00 in | 16.00 in | 8.00 in | 18.00 lbs |
| NMSL-242410 | 24.00 in | 24.00 in | 10.00 in | 35.00 lbs |
