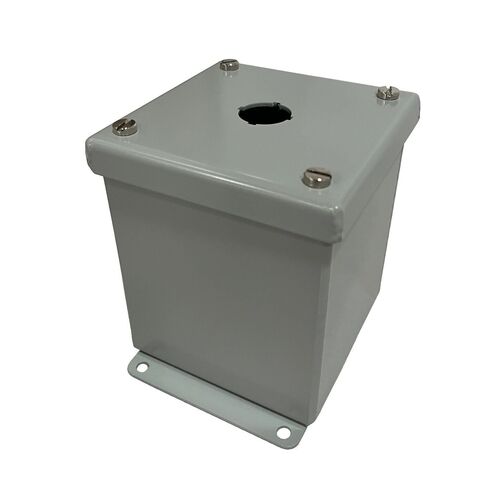

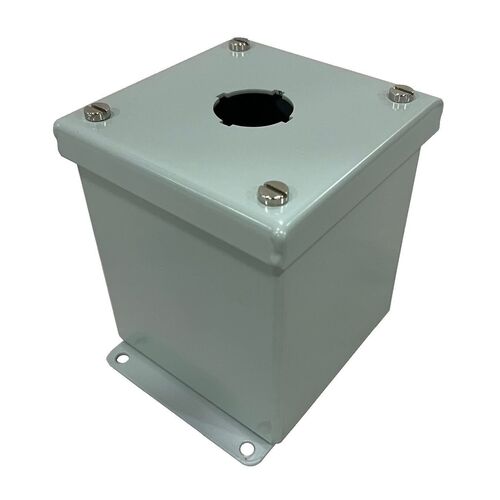

30mm Push Button Lift Off Cover

PB35-30mm Series
NEMA Type 12

Oil & Dust Tight Push Button Enclosures

Application

Ralston’s PB35-30 pushbutton enclosures are designed to provide protection against dust, dirt, and oil for most standard oil tight pushbutton, switches, and pilot lights.

Construction

All PB35-30 enclosures are made from 14 ga. cold rolled steel and have continuously welded seams ground to a smooth finish. Each enclosure comes complete with grounding studs and wall mounting back brackets welded to the top and bottom outside.

The door is prepunched to accept 30mm switches, pilot lights, and pushbuttons.

The doors are sealed with oil resistant neoprene gasket and are secured to the sealed (blind) rivnuts in the enclosure with 10-32 captive screws.

Paint Finish

All enclosures are phosphatized and finished inside and out with ANSI/ASA 61 grey polyester powder coating.

Standards

PB35-30mm enclosures are built to the requirements of NEMA Type 12 specifications for use with industrial controls in ordinary locations, and type 13 for an oil and dust tight enclosure.

PB57-30mm enclosures are CSA certified (file #1174410) and UL 508 Listed (file #136838) as a type 12 enclosure.

Special Orders

Custom units made from stainless steel or with special finishes, sizes or punching can be supplied on order.

Request a Quote Product Brochure Accessories

Part Number	Height	Width	Depth	Weight
PB35-1-30	3.50 in	3.25 in	2.75 in	1.00 lbs
PB35-2-30	5.75 in	3.25 in	2.75 in	1.00 lbs
PB35-3-30	8.00 in	3.25 in	2.75 in	1.50 lbs
PB35-4-30	10.25 in	3.25 in	2.75 in	1.80 lbs
PB35-6-30	9.50 in	6.25 in	3.00 in	2.70 lbs
PB35-9-30	9.50 in	8.50 in	3.00 in	3.20 lbs
PB35-12-30	11.75 in	8.50 in	3.00 in	3.80 lbs
