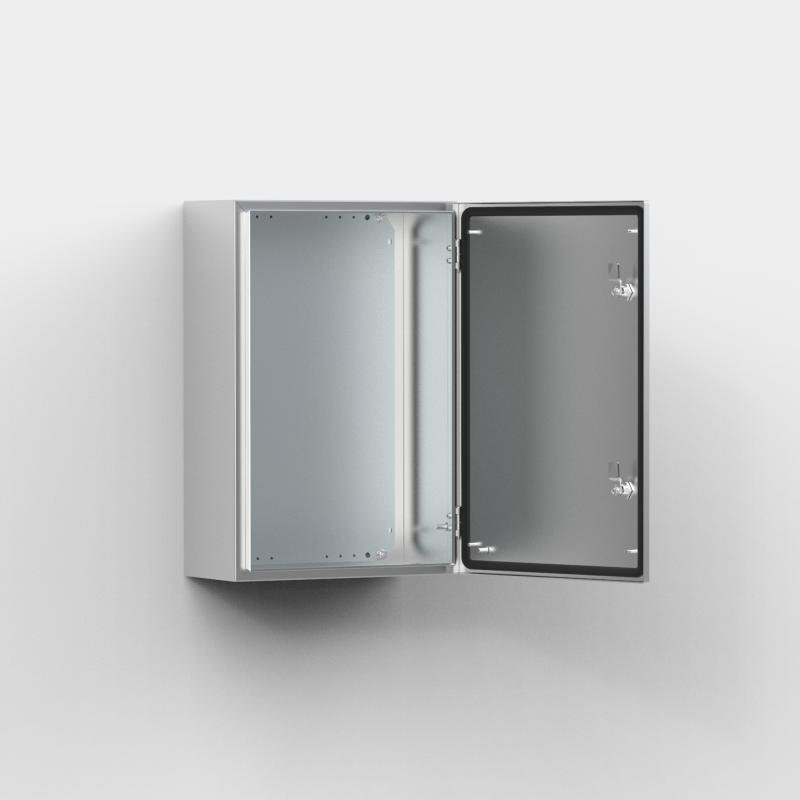

Single Door Stainless Steel Enclosure


EWSS SERIES
NEMA TYPE 4,4X,12,13

Water and Dust Tight Stainless Enclosure



Application:


Ralston’s EWSS series enclosures are designed to provide protection indoors and outdoors, against dust, dirt, oil, and water for items such as: electronic and electrical controls, instrumentation systems, pneumatic, hydraulic and machine controls. The EWSS is designed for use in such areas as dairies, breweries and the food industry where they are subject to frequent high pressure hosing and generally wet conditions (Not submersible).



Construction:


All EWSS enclosures are made from 1.5mm and 1.9mm #304 stainless steel. All seams are continuously welded and ground to a smooth finish. Each enclosure comes complete with grounding studs, and a removable 2mm galvanized back panel mounted on M8 weld nuts.



The 130° opening door is easily removed by pulling the removable hinge pins from the hidden hinges to allow right or left hand opening. The door is sealed with an extruded one-piece polyurethane gasket and is secured closed with chrome plated 3mm DIN type quarter turn latches.



Finish:


Outer body and door of the EWSS has a 240s pre-grained (average 0.5 micron) fine finish for less attachment of chemicals and bacteria to the enclosure surface.  Interior mounting plate is galvanized.



Standards:


The EWSS is built to the requirements of IP66, NEMA Type 12 for industrial use, 13 for oil and dust tight and to 4,4X for water tight and corrosion resistance.

The EWSS is CE, UL and CSA for Canada and the USA.



Special Orders:


Custom units with special sizes and punching can be supplied on order.



Part Number Height Width Depth Weight
EWSS-0302015 306 mm 206 mm 150 mm 5.00 kgs
EWSS-0303015 306 mm 306 mm 150 mm 7.00 kgs
EWSS-0403015 406 mm 306 mm 150 mm 10.00 kgs
EWSS-0302520 306 mm 256 mm 200 mm 7.00 kgs
EWSS-0352520 356 mm 256 mm 200 mm 8.00 kgs
EWSS-0403020 406 mm 306 mm 200 mm 10.00 kgs
EWSS-0404020 406 mm 406 mm 200 mm 10.00 kgs
EWSS-0504020 506 mm 406 mm 200 mm 13.00 kgs
EWSS-0505020 506 mm 506 mm 200 mm 15.00 kgs
EWSS-0604020 606 mm 406 mm 200 mm 15.00 kgs
EWSS-0606020 606 mm 606 mm 200 mm 24.00 kgs
EWSS-0705020 706 mm 506 mm 200 mm 23.00 kgs
EWSS-0805020 806 mm 506 mm 200 mm 26.00 kgs
EWSS-0806020 806 mm 606 mm 200 mm 29.00 kgs
EWSS-0906020 906 mm 606 mm 200 mm 33.00 kgs
EWSS-0806030 806 mm 606 mm 300 mm 33.00 kgs
EWSS-0808030 806 mm 806 mm 300 mm 38.00 kgs
EWSS-0906030 906 mm 606 mm 300 mm 37.00 kgs
EWSS-1008030 1006 mm 806 mm 300 mm 46.00 kgs
