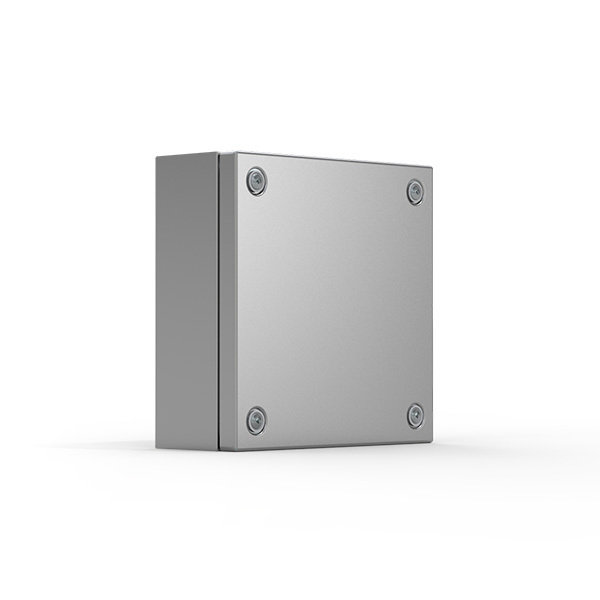

SSTB, ETBS Terminal Box


SSTB, ETBS SERIES
NEMA TYPE 4, 4X, 12

Application:



Ralston's SSTB series enclosures are designed to provide protection indoors and outdoors, against dust, dirt, oil, and water, for items such as: electronic and electrical controls, and pneumatic components.



Construction:



All SSTB enclosures are made from 304 Stainless steel (Body 1mm Door 1.5mm). All seams are continuously welded and ground to a smooth finish. The SSTB comes complete with body and cover grounding studs, as well as four M6x13 studs for mounting optional galvanized interior mounting plates and DIN rail. The removable cover is held secure with four through door screws. The cover is sealed with an injected one-piece polyurethane gasket.



Finish:



All SSTB enclosures are made from 240S pre-grained 304 stainless steel.



Standards:



The SSTB is built to the requirements of IP66, NEMA Type 12 for industrial use, 13 for oil and dust tight and 4, 4X for water tight.



The SSTB is CE, UL and cUL (for Canada).

Part Number Height Width Depth Weight
ETBS-181508 180 mm 150 mm 80 mm 1.70 kgs
ETBS-201808 200 mm 180 mm 80 mm 2.00 kgs
ETBS-202008 200 mm 200 mm 80 mm 2.10 kgs
ETBS-202012 200 mm 200 mm 120 mm 2.50 kgs
ETBS-301508 300 mm 150 mm 80 mm 2.40 kgs
ETBS-301512 300 mm 150 mm 120 mm 2.80 kgs
ETBS-302012 300 mm 200 mm 120 mm 3.20 kgs
ETBS-303012 300 mm 300 mm 120 mm 4.30 kgs
STBS-204008 200 mm 400 mm 80 mm 4.30 kgs
ETBS-402012 400 mm 200 mm 120 mm 4.70 kgs
ETBS-403012 400 mm 300 mm 120 mm 5.20 kgs
EBTS-404012 400 mm 400 mm 120 mm 6.40 kgs
ETBS-502012 500 mm 200 mm 120 mm 5.50 kgs
ETBS-503012 500 mm 300 mm 120 mm 7.10 kgs
ETBS-504012 500 mm 400 mm 120 mm 8.30 kgs
ETBS-602012 600 mm 200 mm 120 mm 6.20 kgs
ETBS-603012 600 mm 300 mm 120 mm 7.80 kgs
ETBS-604012 600 mm 400 mm 120 mm 10.40 kgs
ETBS-802012 800 mm 200 mm 120 mm 7.60 kgs
ETBS-804012 800 mm 400 mm 120 mm 12.90 kgs
