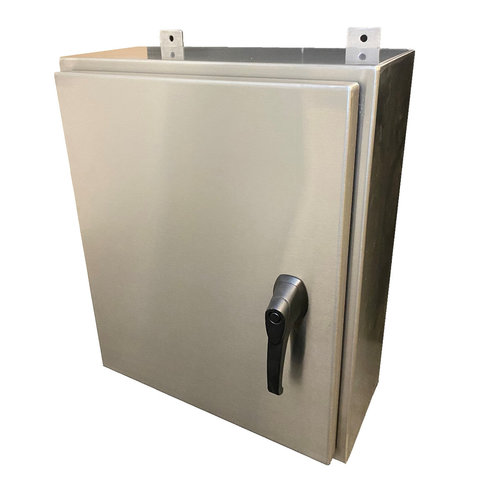

Wall Mount Single Door

N4X-SS SERIES
NEMA TYPE 4,4X

Water and dust tight single door stainless steel enclosure

Application

Ralston’s N4X-SS single door enclosures are applied indoors and outdoors to house such items as: electronic and electrical controls, instrumentation systems, pneumatic, hydraulic, and machine tool controls.

These enclosures are designed to provide protection against dust, dirt, oil, and water. They are for use in areas such as dairies and breweries where they are subject to frequent high pressure hosing and generally wet conditions. (Not submersible)

Construction

All N4X-SS enclosures are made from 14 ga. #304 or #316 stainless steel with a #4 brush finish. The N4X-SS has continuously welded seams ground to a smooth finish. The N4X-SS enclosure has a folded lip around the door opening to provide complete and maximum gasket contact, and to prevent liquids from dripping into the enclosure when the door is open.

Each enclosure comes complete with a removable 12 ga. back panel mounted on 3/8 collar stud, 1/4-20 grounding studs, and four wall mounting back brackets.

Each enclosure door is equipped with neoprene gasket, a removable print pocket, padlocking hasp, 1/4 20 grounding studs, and slotted quarter turn latches to secure the door. The door is easily removed by pulling the pin on the continuous stainless steel piano hinge.

Large N4X-SS enclosures maintain a rigid construction through the use of door stiffeners, body stiffeners, and additional panel mounting studs.

Finish

All enclosures have a #4 brush finish. Inner back panels are painted with high gloss white powder coatings.

Standards

N4X-SS enclosures are built to the requirements of NEMA Type 12 specifications for use with industrial control equipment in ordinary locations, Type 13 for an oil and dust tight enclosure, and Type 4,4X as a water tight corrosion resistant enclosure.

N4X-SS enclosures are CSA certified Type 4,4X (File # LR 23608)

N4X-SS enclosures are UL 508 listed Type 4,4X,12,13 (File # E136838) for Canada and the USA.

Special Orders

Custom units with special sizes or punching can be supplied on order.

Request a Quote Product Brochure Accessories

Part Number	Height	Width	Depth	Weight
N4X-SS-161206	16.00 in	12.00 in	6.00 in	21.00 lbs
N4X-SS-161606	16.00 in	16.00 in	6.00 in	27.00 lbs
N4X-SS-162006	16.00 in	20.00 in	6.00 in	31.00 lbs
N4X-SS-201606	20.00 in	16.00 in	6.00 in	32.00 lbs
N4X-SS-202006	20.00 in	20.00 in	6.00 in	38.00 lbs
N4X-SS-242006	24.00 in	20.00 in	6.00 in	42.00 lbs
N4X-SS-161208	16.00 in	12.00 in	8.00 in	24.00 lbs
N4X-SS-201608	20.00 in	16.00 in	8.00 in	35.00 lbs
N4X-SS-202008	20.00 in	20.00 in	8.00 in	41.00 lbs
N4X-SS-202408	20.00 in	24.00 in	8.00 in	47.00 lbs
N4X-SS-241608	24.00 in	16.00 in	8.00 in	38.00 lbs
N4X-SS-242008	24.00 in	20.00 in	8.00 in	47.00 lbs
N4X-SS-242408	24.00 in	24.00 in	8.00 in	52.00 lbs
N4X-SS-243008	24.00 in	30.00 in	8.00 in	62.00 lbs
N4X-SS-302008	30.00 in	20.00 in	8.00 in	56.00 lbs
N4X-SS-302408	30.00 in	24.00 in	8.00 in	62.00 lbs
N4X-SS-303008	30.00 in	30.00 in	8.00 in	73.00 lbs
N4X-SS-362408	36.00 in	24.00 in	8.00 in	73.00 lbs
N4X-SS-363008	36.00 in	30.00 in	8.00 in	96.00 lbs
N4X-SS-423608	42.00 in	36.00 in	8.00 in	123.00 lbs
N4X-SS-483608	48.00 in	36.00 in	8.00 in	131.00 lbs
N4X-SS-201610	20.00 in	16.00 in	10.00 in	39.00 lbs
N4X-SS-242010	24.00 in	20.00 in	10.00 in	49.00 lbs
N4X-SS-362410	36.00 in	24.00 in	10.00 in	78.00 lbs
N4X-SS-363010	36.00 in	30.00 in	10.00 in	101.00 lbs
N4X-SS-423010	42.00 in	30.00 in	10.00 in	107.00 lbs
N4X-SS-242412	24.00 in	24.00 in	12.00 in	61.00 lbs
N4X-SS-302412	30.00 in	24.00 in	12.00 in	74.00 lbs
N4X-SS-363012	36.00 in	30.00 in	12.00 in	100.00 lbs
N4X-SS-363612	36.00 in	36.00 in	12.00 in	116.00 lbs
N4X-SS-483612	48.00 in	36.00 in	12.00 in	146.00 lbs
N4X-SS-603612	60.00 in	36.00 in	12.00 in	169.00 lbs
N4X-SS-302416	30.00 in	24.00 in	16.00 in	81.00 lbs
N4X-SS-363016	36.00 in	30.00 in	16.00 in	116.00 lbs
N4X-SS-483616	48.00 in	36.00 in	16.00 in	165.00 lbs
