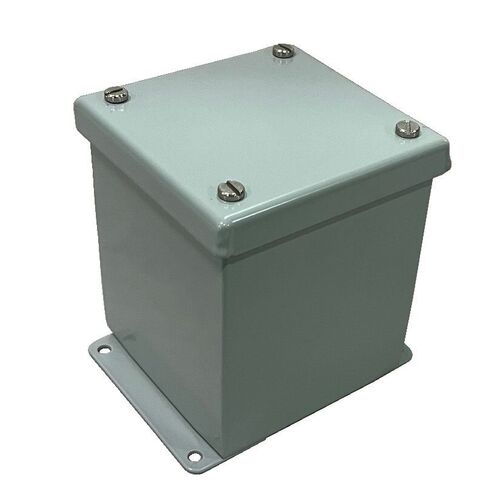

Oil & Dust Tight Wiring Box
Application
Ralston’s PB35-BC series enclosures are designed to provide protection against dust, dirt and oil.
Construction
All PB35-BC enclosures are made from 14 ga. hot rolled steel and have continuously welded seams ground to a smooth finish. Each enclosure comes complete with grounding studs and wall mounting back brackets welded to the top and bottom outside.
PB35-BC doors are sealed with oil resistant neoprene gasket and are secured to sealed (blind) rivnuts in the enclosure with 10-32 captive screws.
Paint Finish
All enclosures are phosphatized and finished inside and out with ANSI/ASA 61 grey polyester powder coating.
Standards
PB35-BC enclosures are built to the requirements of NEMA Type 12 specifications for use with industrial controls in ordinary locations, and type 13 for an oil and dust tight enclosure.
PB35-BC enclosures are CSA certified (file #1174410) and UL 508 Listed (file #136838) as a type 12 enclosure.
Special Orders
Custom units made from stainless steel or with special finishes, sizes or punching can be supplied on order.
| Part Number | Height | Width | Depth | Weight |
|---|---|---|---|---|
| PB35-1-BC | 3.50 in | 3.25 in | 2.75 in | 2.00 lbs |
| PB35-2-BC | 5.75 in | 3.25 in | 2.75 in | 2.50 lbs |
| PB35-3-BC | 8.00 in | 3.25 in | 2.75 in | 3.00 lbs |
| PB35-4-BC | 10.25 in | 3.25 in | 2.75 in | 3.50 lbs |
| PB35-6-BC | 9.50 in | 6.25 in | 3.00 in | 5.50 lbs |
| PB35-9-BC | 9.50 in | 8.50 in | 3.00 in | 6.70 lbs |
| PB35-12-BC | 11.75 in | 8.50 in | 3.00 in | 7.50 lbs |
PB35-1-BC
PB35-BC General Drawing
PB35-1-BC
