Wall Mount Single Door

V-GP SERIES
NEMA TYPE 12,13,4


Oil and Dust Tight Single Door Enclosure



Application


Ralston’s V-GP Vision Series single door enclosures are applied indoors and outdoors to house such items as: electronic and electrical controls, instrumentation systems, pneumatic, hydraulic and machine tool controls.

These enclosures are designed to provide protection against dust, dirt, oil and water. They are suitable for areas subject to high pressure hosing and generally wet conditions. (Not submersible)



Construction


All V-GP Vision Series enclosures are made from 14 ga. hot rolled steel and have continuously welded seams ground to a smooth finish. The V-GP Vision Series has a formed lip around the door opening to provide complete and maximum gasket contact, and to prevent liquids from dripping into the enclosure when the door is open.



Each enclosure comes complete with a removable 12 ga. back panel mounted on 3/8 collar studs and a 1/4-20 grounding stud.



Each enclosure’s door is equipped with neoprene gasket, a removable print pocket on sizes with B dimension 16” or more, 1/4-20 grounding stud and slotted quarter turn latches to secure the door. (optional locking latches are also available) The 180° opening door is easily removed.



Large enclosures maintain a rigid construction through the use of door and body stiffeners as well as additional panel mounting studs.



Paint Finish


All enclosures are phosphatized and finished inside and out with ANSI/ASA 61 grey polyester powder coating. Inner back panels are painted with high gloss white powdered coating.



Standards


V-GP enclosures are built to the requirements of NEMA Type 12 specifications for use with industrial control equipment in ordinary locations, Type 13 for an oil and dust tight enclosure, and Type 4,4X as a water tight corrosion resistant enclosure.



V-GP enclosures are CSA certified type 4, 4X, 12, 13 (File #LR 23608).



V-GP enclosures are UL 508 listed type 4,4X,12,13 (File #E136838).



Special Orders


Custom units with special finishes, sizes or punching can be supplied on order.

Request a Quote Product Brochure Accessories

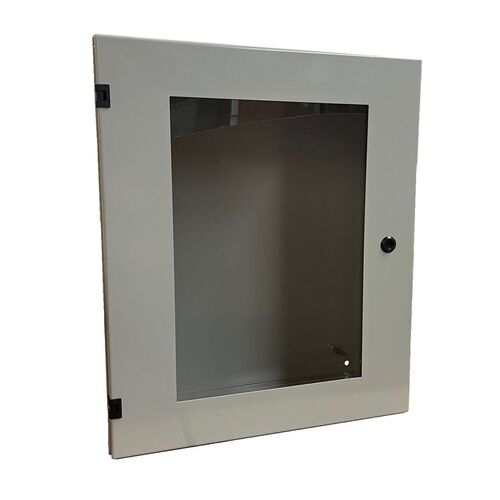

V-GP Closed
V-GP Open
V-GP Closed thumbnail
V-GP Open thumbnail
CSA UL Approved
Part Number Height Width Depth Weight
V-GP-121206 12.00 in 12.00 in 6.00 in 15.00 lbs
V-GP-161206 16.00 in 12.00 in 6.00 in 20.00 lbs
V-GP-161606 16.00 in 16.00 in 6.00 in 25.00 lbs
V-GP-201606 20.00 in 16.00 in 6.00 in 30.00 lbs
V-GP-202006 20.00 in 20.00 in 6.00 in 35.00 lbs
V-GP-161208 16.00 in 12.00 in 8.00 in 33.00 lbs
V-GP-162008 16.00 in 20.00 in 8.00 in 23.00 lbs
V-GP-201608 20.00 in 16.00 in 8.00 in 33.00 lbs
V-GP-202008 20.00 in 20.00 in 8.00 in 39.00 lbs
V-GP-202408 20.00 in 24.00 in 8.00 in 44.00 lbs
V-GP-241608 24.00 in 16.00 in 8.00 in 37.00 lbs
V-GP-242008 24.00 in 20.00 in 8.00 in 44.00 lbs
V-GP-242408 24.00 in 24.00 in 8.00 in 50.00 lbs
V-GP-243008 24.00 in 30.00 in 8.00 in 60.00 lbs
V-GP-302008 30.00 in 20.00 in 8.00 in 53.00 lbs
V-GP-302408 30.00 in 24.00 in 8.00 in 59.00 lbs
V-GP-303008 30.00 in 30.00 in 8.00 in 78.00 lbs
V-GP-362408 36.00 in 24.00 in 8.00 in 69.00 lbs
V-GP-363008 36.00 in 30.00 in 8.00 in 86.00 lbs
V-GP-242010 24.00 in 20.00 in 10.00 in 48.00 lbs
V-GP-302010 30.00 in 20.00 in 10.00 in 58.00 lbs
V-GP-302410 30.00 in 24.00 in 10.00 in 64.00 lbs
V-GP-362410 36.00 in 24.00 in 10.00 in 74.00 lbs
V-GP-423010 42.00 in 30.00 in 10.00 in 102.00 lbs
V-GP-202012 20.00 in 20.00 in 12.00 in 42.00 lbs
V-GP-242412 24.00 in 24.00 in 12.00 in 59.00 lbs
V-GP-302412 30.00 in 24.00 in 12.00 in 68.00 lbs
V-GP-363012 36.00 in 30.00 in 12.00 in 98.00 lbs
V-GP-363612 36.00 in 36.00 in 12.00 in 112.00 lbs
V-GP-423612 42.00 in 36.00 in 12.00 in 126.00 lbs
V-GP-482412 48.00 in 24.00 in 12.00 in 100.00 lbs
V-GP-483612 48.00 in 36.00 in 12.00 in 141.00 lbs
V-GP-602412 60.00 in 24.00 in 12.00 in 129.00 lbs
V-GP-603612 60.00 in 36.00 in 12.00 in 164.00 lbs
V-GP-242416 24.00 in 24.00 in 16.00 in 68.00 lbs
V-GP-363016 36.00 in 30.00 in 16.00 in 107.00 lbs
V-GP-483616 48.00 in 36.00 in 16.00 in 156.00 lbs
V-GP-603616 60.00 in 36.00 in 16.00 in 186.00 lbs
