Wall Mount Single Door with Window

V-GW SERIES
NEMA TYPE 12, 13, 4, 4X


Water and Dust Tight Single Door Enclosure with Window



Application


Ralston’s V-GW Vision Series single door enclosures are applied indoors and outdoors to house such items as: electronic and electrical controls, instrumentation systems, pneumatic, hydraulic and machine tool controls.

These enclosures are designed to provide protection against dust, dirt, oil and water. They are suitable for areas subject to high pressure hosing and generally wet conditions. (Not submersible)



Construction


All V-GW Vision Series enclosures are made from 14 ga. hot rolled steel and have continuously welded seams ground to a smooth finish. The V-GW Vision Series has a formed lip around the door opening to provide complete and maximum gasket contact, and to prevent liquids from dripping into the enclosure when the door is open.



Each enclosure comes complete with a removable 12 ga. back panel mounted on 3/8 collar studs and a 1/4-20 grounding stud.



Each enclosure’s door is equipped with a lexan window, neoprene gasket, 1/4-20 grounding stud and slotted quarter turn latches to secure the door. (optional locking latches are also available) The 180° opening door is easily removed.



Large enclosures maintain a rigid construction through the use of body stiffeners as well as additional panel mounting studs.



Paint Finish


All enclosures are phosphatized and finished inside and out with ANSI/ASA 61 grey polyester powder coating. Inner back paneling is painted with high gloss white powdered coating.



Standards


V-GW enclosures are built to the requirements of NEMA Type 12 specifications for use with industrial control equipment in ordinary locations, Type 13 for oil and dust tight enclosures, and Type 4,4X as a water tight corrosion resistant enclosure.



V-GW enclosures are CSA certified (File #LR 23608).



Special Orders


Custom units with special finishes, sizes or punching can be supplied on order.

Request a Quote Product Brochure Accessories

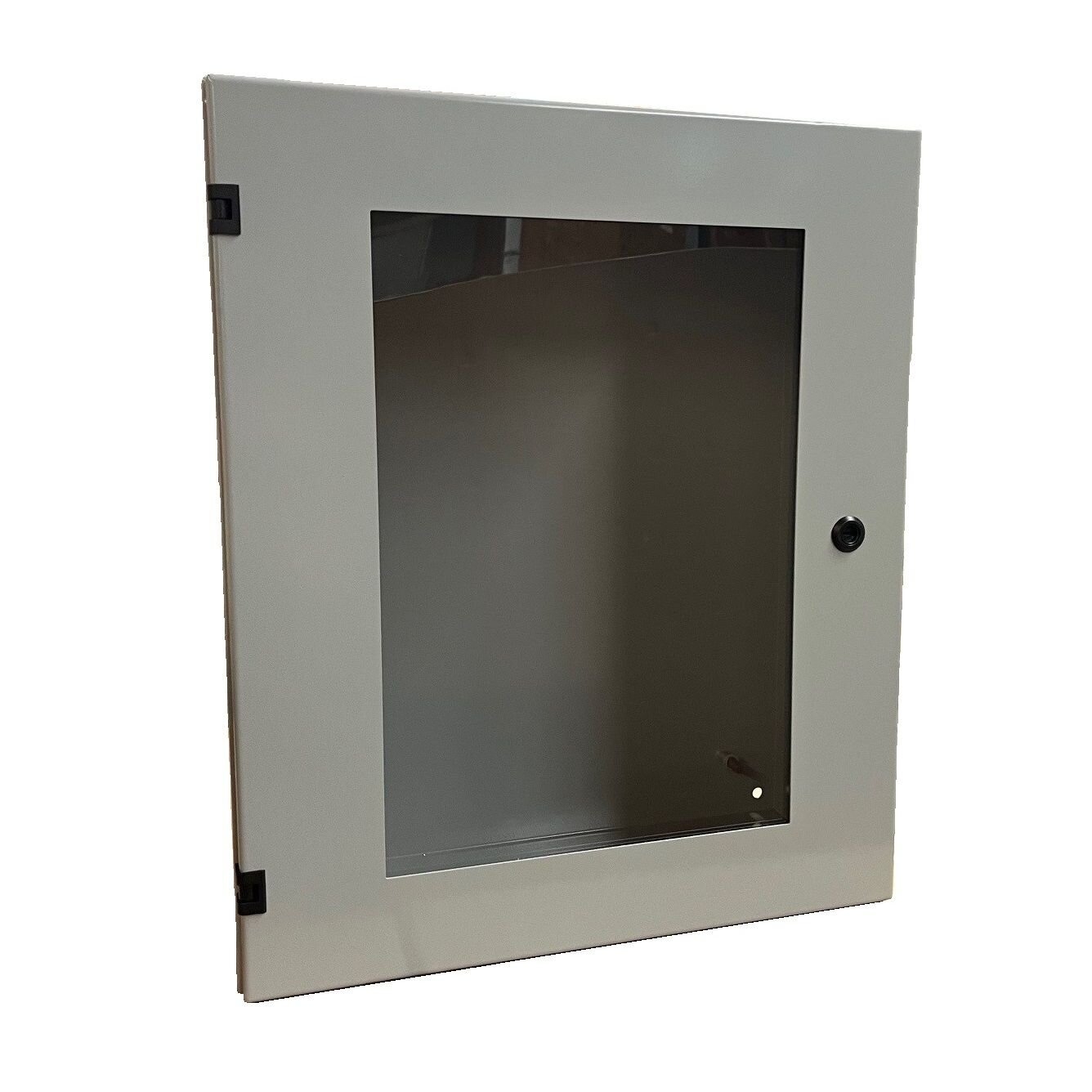

V-GW Closed
V-GW Open
V-GW Closed thumbnail
V-GW Open thumbnail
CSA
Part Number Height Width Depth Weight
V-GW-121206 12 in 12 in 6 in 15 lbs
V-GW-161206 16 in 12 in 6 in 20 lbs
V-GW-161606 16 in 16 in 6 in 25 lbs
V-GW-201606 20 in 16 in 6 in 30 lbs
V-GW-202006 20 in 20 in 6 in 35 lbs
V-GW-161208 16 in 12 in 8 in 23 lbs
V-GW-162008 16 in 20 in 8 in 33 lbs
V-GW-201608 20 in 16 in 8 in 33 lbs
V-GW-202008 20 in 20 in 8 in 39 lbs
V-GW-202408 20 in 24 in 8 in 44 lbs
V-GW-241608 24 in 16 in 8 in 37 lbs
V-GW-242008 24 in 20 in 8 in 44 lbs
V-GW-242408 24 in 24 in 8 in 50 lbs
V-GW-243008 24 in 30 in 8 in 60 lbs
V-GW-302008 30 in 20 in 8 in 53 lbs
V-GW-302408 30 in 24 in 8 in 59 lbs
V-GW-242010 24 in 20 in 10 in 48 lbs
V-GW-302010 30 in 20 in 10 in 58 lbs
V-GW-302410 30 in 24 in 10 in 64 lbs
V-GW-202012 20 in 20 in 12 in 46 lbs
V-GW-242412 24 in 24 in 12 in 59 lbs
V-GW-302412 30 in 24 in 12 in 68 lbs
V-GW-242416 24 in 24 in 16 in 68 lbs
