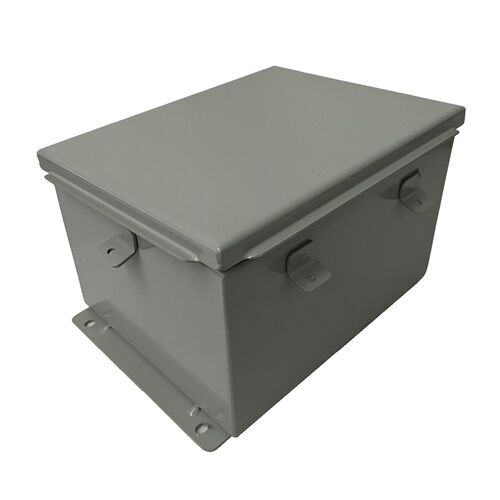

JIC Lift Off Cover

IBWR SERIES
NEMA TYPE 4

Water & Dust Tight Lift Off Cover

Application

Ralston’s IBWR Series, JIC enclosures, are designed to provide protection, indoors and outdoors, against dust, dirt, oil, and water for items such as: pneumatic or hydraulic instruments, transformers, and junction wiring. These enclosures are for use in areas such as dairies and breweries where they are subject to frequent high pressure hosing and generally wet conditions.

Construction

All IBWR enclosures are made from 14 ga. hot rolled steel. All seams are continuously welded and each enclosure comes complete with a removable 14 ga. back panel mounted on four 10-32 weld nuts. Grounding studs are provided on the inside of the box and door, and wall mounting back brackets are welded on the top and bottom outside. The IBWR door is a lift off cover, sealed with a one piece neoprene gasket and is secured to the enclosure with stainless steel clamping hardware on all four sides.

Paint Finish

All enclosures are phosphatized and finished inside and out with ANSI/ASA 61 grey polyester powder coating. Inner back panels are painted with high gloss white powder coatings.

Standards

IBWR enclosures are built to the requirements of NEMA type 12 specifications for use with industrial control equipment in ordinary locations, type 13 for an oil and dust tight enclosure, and type 4,4X as a water tight corrosion resistant enclosure.

IBWR enclosures are CSA certified (File #LR 24024) and UL 508 listed (File #E136838) as a type 4,4X enclosure.

Special Orders

Custom units made from stainless steel or with special finishes, sizes or punching can be supplied on order.

Request a Quote Product Brochure Accessories

Part Number	Height	Width	Depth	Weight
IBWR-060403	6.00 in	4.00 in	3.00 in	4.00 lbs
IBWR-060604	6.00 in	6.00 in	4.00 in	6.00 lbs
IBWR-121005	12.00 in	10.00 in	5.00 in	15.00 lbs
