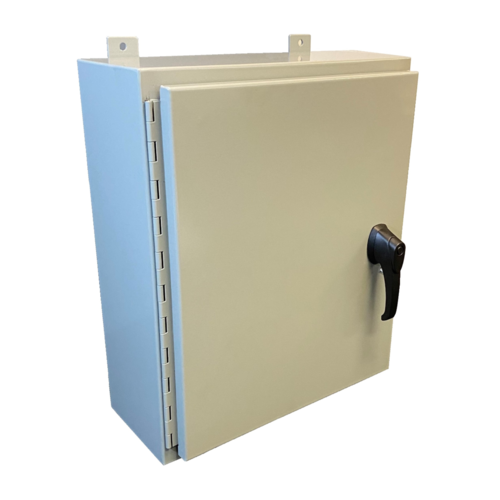

Wall Mount Single Door

N4X SERIES
NEMA TYPE 4

Water & Dust Tight Single Door Powder Painted Enclosure

Application

Ralston’s N4X single door enclosures are applied indoors and outdoors to house such items as: electronic and electrical controls, instrumentation systems, pneumatic, hydraulic, and machine tool controls.

These enclosures are designed to provide protection against dust, dirt, oil, and water. They are for use in areas such as dairies and breweries where they are subject to frequent high pressure hosing and generally wet conditions. (Not submersible)

Construction

All N4X enclosures are made from 14 ga. hot rolled steel and have continuously welded seams ground to a smooth finish. The N4X enclosure has a folded lip around the door opening to provide complete and maximum gasket contact, and to prevent liquids from dripping into the enclosure when the door is open.

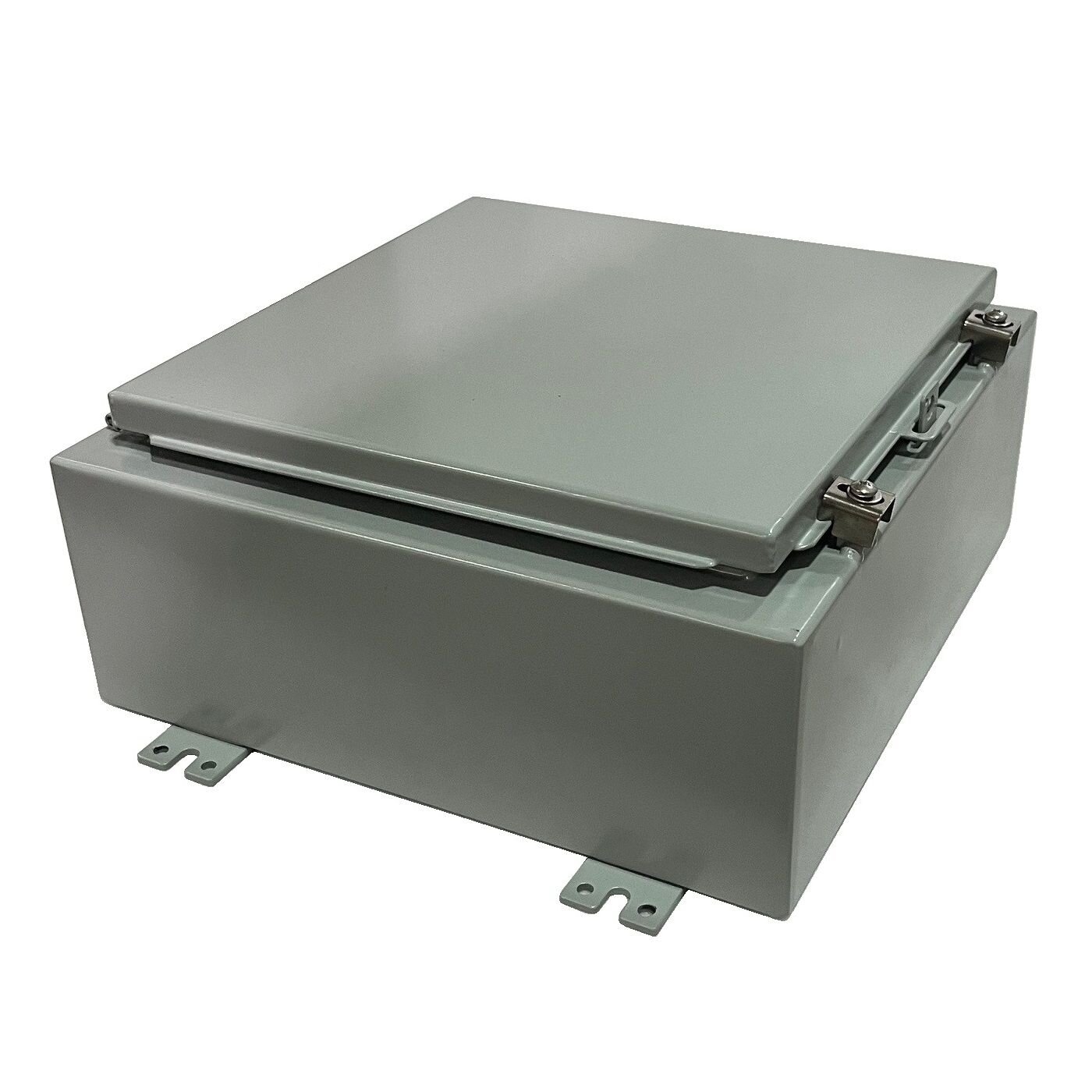

Each enclosure comes complete with a removable 12 ga. back panel mounted on 3/8 collar stud, 1/4-20 grounding studs, and four wall mounting back brackets.

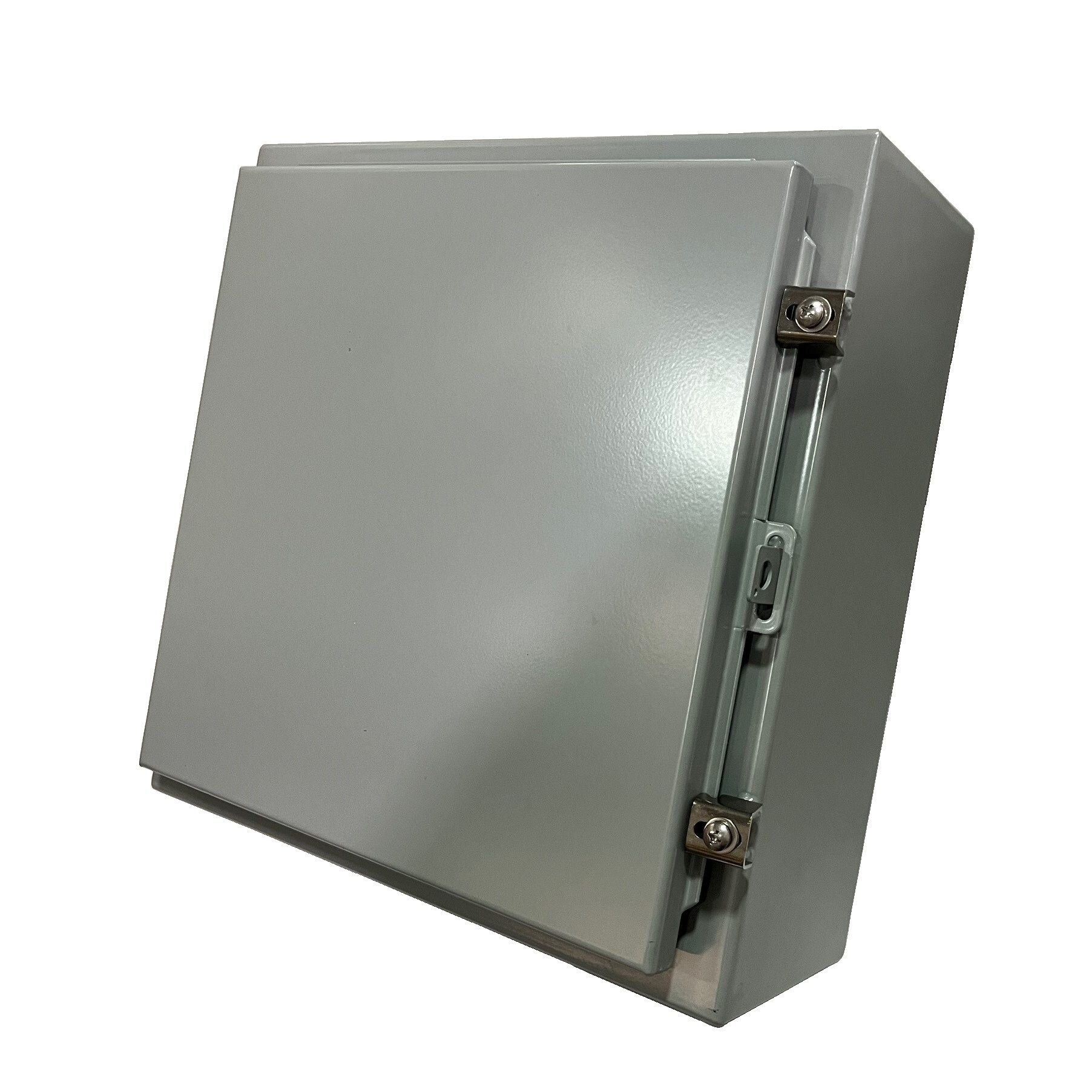

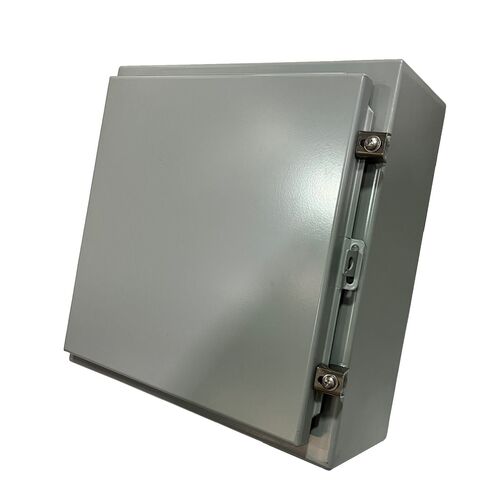

Each enclosure door is equipped with neoprene gasket, a removable print pocket, padlocking hasp, 1/4-20 grounding studs, and stainless steel door clamping hardware on three sides. The door is easily removed by pulling the pin on the continuous stainless steel piano hinge.

Paint Finish

All enclosures are phosphatized and finished inside and out with ANSI/ASA 61 grey polyester powder coating. Inner back panels are painted with high gloss white powder coatings.

Standards

N4X enclosures are built to the requirements of NEMA type 12 specifications for use with industrial control equipment in ordinary locations, type 13 for an oil and dust tight enclosure, and type 4,4X as a water tight corrosion resistant enclosure.

Special Orders

Custom units made from stainless steel or with special finishes, sizes or punching can be supplied on order.

N4X enclosures are CSA certified (File #LR 23608) and UL 508 listed (File #E136838) as a type 4,4X enclosure.

Request a Quote Product Brochure Accessories

Part Number	Height	Width	Depth	Weight
N4X-161206	16.00 in	12.00 in	6.00 in	22.00 lbs
N4X-161606	16.00 in	16.00 in	6.00 in	26.00 lbs
N4X-201606	20.00 in	16.00 in	6.00 in	32.00 lbs
N4X-202006	20.00 in	20.00 in	6.00 in	37.00 lbs
N4X-242006	24.00 in	20.00 in	6.00 in	42.00 lbs
N4X-242406	24.00 in	24.00 in	6.00 in	48.00 lbs
N4X-161208	16.00 in	12.00 in	8.00 in	25.00 lbs
N4X-201608	20.00 in	16.00 in	8.00 in	35.00 lbs
N4X-202008	20.00 in	20.00 in	8.00 in	41.00 lbs
N4X-242008	24.00 in	20.00 in	8.00 in	46.00 lbs
N4X-242408	24.00 in	24.00 in	8.00 in	52.00 lbs
N4X-302408	30.00 in	24.00 in	8.00 in	66.00 lbs
N4X-303008	30.00 in	30.00 in	8.00 in	77.00 lbs
N4X-362408	36.00 in	24.00 in	8.00 in	74.00 lbs
N4X-363008	36.00 in	30.00 in	8.00 in	82.00 lbs
N4X-423608	42.00 in	36.00 in	8.00 in	114.00 lbs
N4X-242010	24.00 in	20.00 in	10.00 in	50.00 lbs
N4X-302410	30.00 in	24.00 in	10.00 in	62.00 lbs
N4X-362410	36.00 in	24.00 in	10.00 in	78.00 lbs
N4X-423010	42.00 in	30.00 in	10.00 in	108.00 lbs
N4X-302412	30.00 in	24.00 in	12.00 in	72.00 lbs
N4X-363012	36.00 in	30.00 in	12.00 in	99.00 lbs
N4X-423612	42.00 in	36.00 in	12.00 in	128.00 lbs
N4X-483612	48.00 in	36.00 in	12.00 in	146.00 lbs
N4X-603616	60.00 in	36.00 in	16.00 in	190.00 lbs
